Sapphire Tab-Tensioned Recessed Ceiling Screen (16:9) 3.0m 136"

Sapphire Tab-Tensioned Recessed Ceiling Screen (16:9) 3.0m 136"


Manufacturers P/N: SETC300WSF-ATR

  • Electric tab tensioned wall screen
  • Widescreen 16:9 aspect ratio
  • 3.0m wide (136"diag)

Please double-check the full size of the screen including any borders, casing/housing dimensions, etc. against the size of the space you wish to install it into, and allow for a degree of tolerance.

Regular price £1,725.00
Regular price Sale price £1,725.00
£2,070.00 Inc VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Collapsible content

Sapphire Tab-Tensioned Recessed Ceiling Screen (16:9) 3.0m 136"

The Sapphire Electric Tab Tensioned Recessed Ceiling projector screen is the perfect high-end home cinema screen, and offers you a super quiet and discreet projector screen with a superior viewing experience that will disappear seamlessly into your setting.

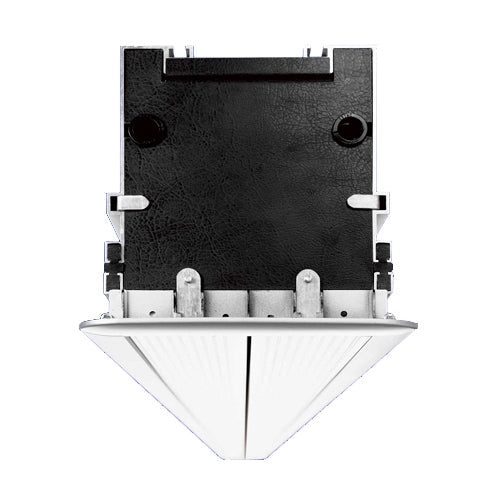

The screen has a sleek white aluminium casing, designed for ceiling mounted flush into the ceiling or recess for a discreet look. We recommend professional installation.

It comes with the added feature of superior screen fabric with a unique tension system.Tab-tensioned screens work in the same way as electric wall/ceiling screens, but offer the additional benefit of an inbuilt tension system to ensure a long-lasting and completely flat viewing surface, which creates a theatre-level imaging effect. The material on a Tab Tension screen is not only pulled down by the weighted bar at the bottom of the fabric, but also from the left and right side by a Nylon string. The string is periodically connected to the material via small "Tabs" hence the name Tab Tension. The Sapphire Tab Tensioned screens have a unique ratchet mechanism at each end of the weighted bar so that the tensioning strings can be easily adjusted should the temperature have any effect on the screen material

The soft-touch material is optimised for home cinema use, producing a high contrast and uniform reflectivity. A black PVC backing prevents light leakage so that the screen can be positioned in front of a window. Whilst the black borders surrounding the viewing area add contrast and improve image quality.

The screen is supplied with an Infrared remote control and IR extender so that the screen can be recessed or hidden out of sight. You can also automate the projector screen to drop down when a projector is turned on/off using the supplied 10m trigger cable (projector need a 12v output). Supplied with bear end cables for RS232 and contact closure control.

The unusually quiet operation is due to the unique way that the motor section of the housing is separated from the ceiling section of the housing by a rubber seal. This stops any vibration from travelling through into the ceiling void, amplifying the sound. An issue found with other In-ceiling designs. This along with the trap door mechanism makes this screen the perfect discreet option for projection.

The fabric used is a specially designed PVC material to help capture a flawless and outstanding image. The screen is coated with micron diamond optical microgrooves to help produce a 4K resolution.

Sapphire Tab Tension Electric Screen - Fabric Specs

Sapphire Tab Tension Electric Screen - Fabric Specs

Screen Dimensions

Screen Size: 3.0m
Viewing Area: 3010 x 1693 (WxH)
Black Border Area: Top 400mm, Bottom 50mm, Sides 100mm left and right
Diagonal Image Size: 136"diagonal
Case Dimensions: 3641x161x170mm (L x H x W)

Aspect Ratio: 16:9
Screen Gain: 1:1

More Info

This screen is ideal for use with Full HD home cinema projectors including ultra/short throw projectors.


We recommend Professional installation

Aspect Ratio

It's very important to consider the aspect ratio of the projector screen that you are buying. This screen is a Widescreen (16:9) format projector screen. Typically you want to match the picture shape with the native resolution of your projector, and this screen is ideally suited to match a Widescreen High Definition (HD) picture 1920x1080px. Mainly used for home cinema, as this is the standard format of modern TV sets. Perfect for SKY, BluRay, Gaming etc

Aspect Ratio buying guide

About Sapphire AV

  Sapphire projector screens are well made and fantastic quality. They offer a wide range of screens and really great support. All products come with a 3 year warranty for peace of mind.
