Sapphire SmartMove Electric Projector Screen (4:3) 2.0m 100"

Sapphire SmartMove Electric Projector Screen (4:3) 2.0m 100"

SKU:PROSC-1139

Manufacturers P/N: SSM200RADV

  • Electric Smartmove screen for high ceilings
  • Video 4:3 aspect ratio
  • 2.0m wide (100"diag)

Please double-check the full size of the screen including any borders, casing/housing dimensions, etc. against the size of the space you wish to install it into, and allow for a degree of tolerance.

Regular price £1,295.00
Regular price Sale price £1,295.00
£1,554.00 Inc VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Collapsible content

Sapphire SmartMove Electric Projector Screen (4:3) 2.0m 100"

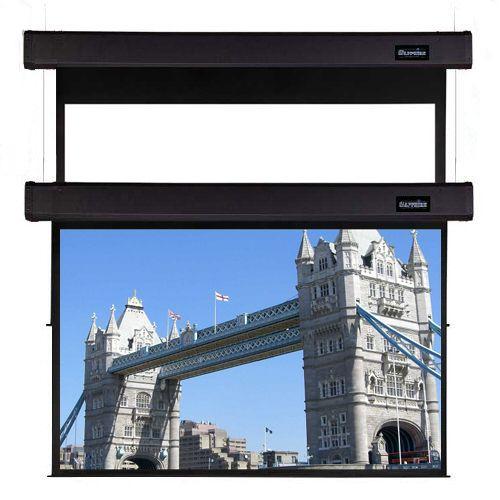

The Sapphire SmartMove electric projector screen is the perfect solution for high ceiling applications such as churches, school halls, auditoriums and theatres. A revolutionary product designed for installation where an extra drop is required to cope with very high ceilings or stage settings.

This specialist projector screen has a unique design which allows you to drop the screen down from the barrel casing, but also drop the barrel casing itself lowering the viewing area even further.

The SmartMove has two motors.

One motor is designed to enable the screen casing to be dropped up to 5 meters from the mounted position on built-in metal wires. The drop level is adjustable and remote-controlled at ground level providing easy installation and control.

There is a secondary control to determine the drop of projection fabric from the screen casing downwards. Power is via a supplied reel which is fitted at roof level which allows the power to unwind as the screen drops. As it retracts back the coil rolls back the electric lead. To power the screen you will require a single gang plug at roof level.

The two motors are radio remote controlled and the remote will operate the fabric and hoist wires separately. The supplied remote control can operate the screen up to 25 meters away. This screen can be used with the Sapphire Screen Trigger Kit (sold separately). RS32 Capable.

Supplied with safety straps for additional security. We recommend professional installation.

Fabric Specifications

The Sapphire MovieSmart provides an innovative solution to the problems long fabrics are prone to (curling, hanging in the way of stage lighting etc)

Sapphire's matt white fabric is composed of triple-ply fibreglass laminate which helps prevent wrinkles and waves. The screen fabric consists of a special material that helps prevent the loss of light, making it compatible with non-short throw projectors. Our screen fabrics are designed to be fire, water, and mould resistant and can be cleaned if necessary. The top layer of the fabric has microdots that are made with PVC technology that helps create the best possible reflection.

The 1.1 gain reflects the same amount of light back that the projector produces achieving a true cinema experience.

The back of the fabric is completely black enabling you to put this in front of a window.

Sapphire Screen Fabric Specs

Sapphire SmartMove Control Diagram



Screen Dimensions

Screen Size: 2.0m
Viewing Area: 2030x1520mm (WxH)
Black Border Area: Top 200mm, Bottom 50mm, Sides 50mm left and right
Diagonal Image Size: 100"diagonal
Case Dimensions: 2327x173x132

Aspect Ratio: 4:3
Screen Gain: 1:1

More Info

This screen is not compatible with Ultra/Short-throw Projectors. Even the very best triple laminated fibreglass fabric has undulations that will be exaggerated when the light is vertically pointed down onto the fabric. Tab Tensioned or Fixed Frame Screens are recommended for ultra/short throw applications

We recommend professional installation.

Aspect Ratio

It's very important to consider the aspect ratio of the projector screen that you are buying. This screen is a Video (4:3) format projector screen. This aspect ratio was the most popular before the introduction of 16:9 for modern HD home cinema, and 16:10 Widescreen laptops for business. These days, there are relatively few video sources with a native SVGA resolution (800x600px).

Aspect Ratio buying guide

About Sapphire AV

  Sapphire projector screens are well made and fantastic quality. They offer a wide range of screens and really great support. All products come with a 3 year warranty for peace of mind.
