Sapphire Recessed Ceiling Screen (4:3) 1.8m 84"
Sapphire Recessed Ceiling Screen (4:3) 1.8m 84"
SKU:PROSC-1151
Manufacturers P/N: SESC180BV-A2
- Electric In-Ceiling screen
- Video 4:3 aspect ratio
- 1.8m wide (84"diag)
Please double-check the full size of the screen including any borders, casing/housing dimensions, etc. against the size of the space you wish to install it into, and allow for a degree of tolerance.
Collapsible content

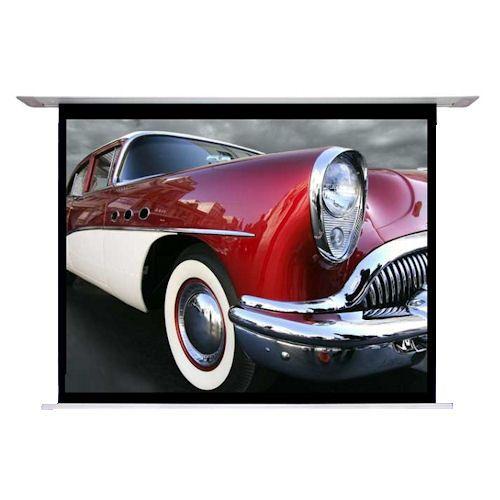

Sapphire Recessed Ceiling Screen (4:3) 1.8m 84"
Get the high-end look without the high-end price.
This range of projector screens from Sapphire is designed to be mounted into the ceiling recess for a professional and streamlined finish. Once fitted the projector screen will be almost completely hidden from view, other than a very smart ribbed aluminium profile edged by a stylish curved end panel at each side of the screen. As it is all white it will blend in with most ceilings.
The screen can be fitted to standard plasterboard ceilings (subject to the joists being suitable) or built into suspended ceiling structures and is very easy to install.
The screen comes supplied with a 3m four core electrical lead and a control box with radio-controlled remote as standard and comes supplied with a connection to plug into the included 12V trigger lead if your projector has a 12V out socket (3.5mm male required). Alternatively, the screen can be used with the optional Sapphire wireless trigger system (subject to modification of the control box used). This automatically operates the screen when the connected projector is in use.
Fabric Specifications
Sapphire's matt white fabric is composed of triple-ply fibreglass laminate which helps prevent wrinkles and waves. The screen fabric consists of a special material that helps prevent the loss of light, making it compatible with non-short throw projectors. Our screen fabrics are designed to be fire, water, and mould resistant and can be cleaned if necessary. The top layer of the fabric has microdots that are made with PVC technology that helps create the best possible reflection.
The 1.1 gain reflects the same amount of light back that the projector produces achieving a true cinema experience.
The back of the fabric is completely black enabling you to put this in front of a window.
- Supplied with a 10m trigger cable to enable you to trigger the screen once the projector is on or off (projector need a 12v output)
- The Screen is supplied with an Infrared remote control.
- Supplied with bear end cables for RS232 and contact closure control.
- The remote control will operate the screen up to 8 meters away.
- Energy-saving with the ultra-low power consumption.
- Sleek white aluminium casing to blend in with most ceilings.
Screen Dimensions
Screen Size: 1.8m
Viewing Area: 1707x1280mm (WxH)
Black Border Area: Top 670mm, Bottom 30mm, Sides 50mm left and right
Diagonal Image Size: 84"diagonal
Case Dimensions: 1867x122x135
Aspect Ratio: 4:3
Screen Gain: 1:1
Download the full-screen size guide below:
Screen Size Guide |
***Dimensions are approximate and have a degree intolerance***
More Info
- Supplied with a 10m trigger cable to enable you to trigger the screen once the projector is on or off (projector need a 12v output)
- The Screen is supplied with an Infrared remote control.
- Supplied with bear end cables for RS232 and contact closure control.
- The remote control will operate the screen up to 8 meters away.
- Energy-saving with the ultra-low power consumption.
- Sleek white aluminium casing to blend in with most ceilings.
Aspect Ratio
It's very important to consider the aspect ratio of the projector screen that you are buying. This screen is a Video (4:3) format projector screen. This aspect ratio was the most popular before the introduction of 16:9 for modern HD home cinema, and 16:10 Widescreen laptops for business. These days, there are relatively few video sources with a native SVGA resolution (800x600px).
Aspect Ratio buying guide
About Sapphire AV
Sapphire projector screens are well made and fantastic quality. They offer a wide range of screens and really great support. All products come with a 3 year warranty for peace of mind. |
