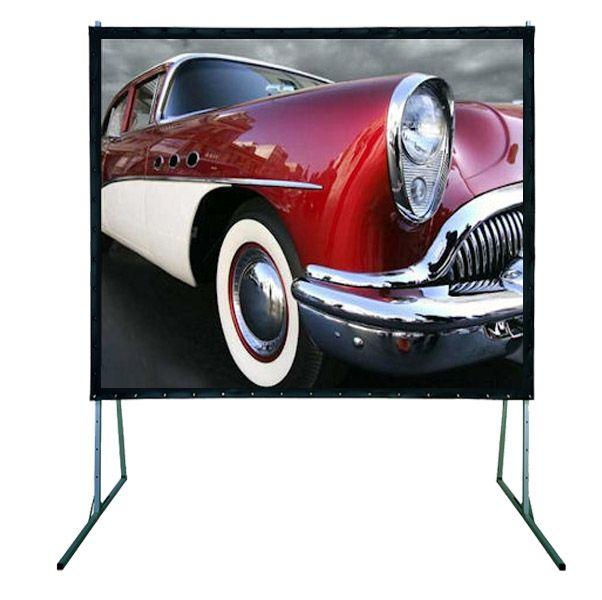

Sapphire Rapidfold Screen (Front & Rear Projection) (4:3) 4.0m 199"

The perfect portable and height-adjustable solution for any venue, no tools required.

The Sapphire Rapidfold screen is ideally suited for any large projection solutions. The Rapidfold frame has been engineered to make installation simple. Whether for a permanent installation or for the demands of event hire the Rapidfold screen is designed with longevity in mind.

• Portable
• Height Adjustable
• Front and rear projection

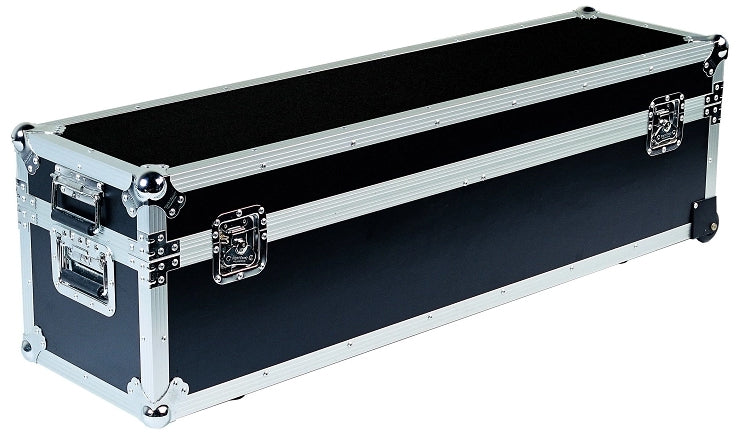

• Comes with a frame and a flight case on wheels
• When assembled the screen is perfectly flat creating a flawless picture

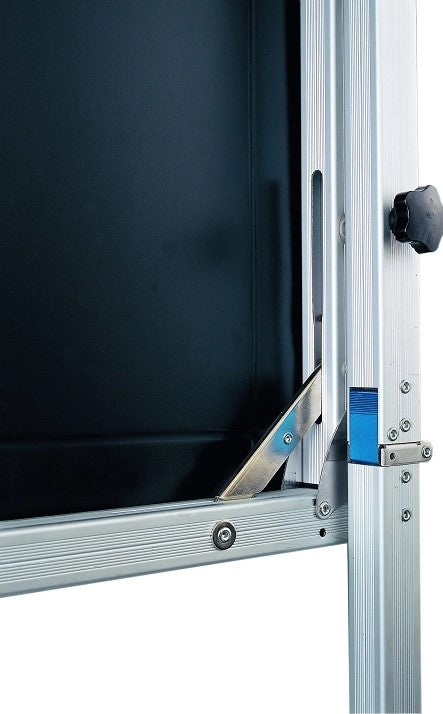

The unique lightweight 'one piece' frame installs in seconds without the use of tools. The frame comprises a rugged aluminium frame with multiple easy locking joints, and quick release mechanisms so that the screen can be installed in seconds.

The Matt White, Flame retardant and mildew resistant Fabric is attached to the frame with a quick-release popper system (dome and grommet).

Fabric specifications:

Front Projection

The fabric used is a specially designed PVC material to help capture a flawless and outstanding image. The screen is coated with micron diamond optical microgrooves to help produce a 4K resolution.

Rear Projection

The rear projection fabric features a transparent material for rear projection applications. The material is grey opaque which helps achieve a very high level of contrast as well as a low reflection for ambient light.

Screen Size: 4.0m
Viewing Area: 4046x3048mm (WxH)
Black Border Area: Top 104mm, Bottom 104mm, Sides 91mm left and right
Diagonal Image Size: 199"diagonal
Case Dimensions: 1385x350x320

Aspect Ratio: 4:3
Screen Gain: 1:1

Please see the table and image below that show the screen dimensions.

Product Code	PROSC-1126
Projection	Front & Rear Projection
Image Size	(W x H) 4046 x 3048mm (199" Diagonal Size)
Border Dimensions	(B1) - 91mm, (C1) -104mm
Fabric Size	(L) Fabric Width 4228mm, (F) Fabric Height 3256mm
Height Adjustment	(H1) Min 221mm Max 1056mm (Floor to bottom of the screen) (H2) Min 3204mm Max 4313mm (Floor to top of the screen)
Frame Profile	32mm x 32mm

This is the 4:3 version containing :

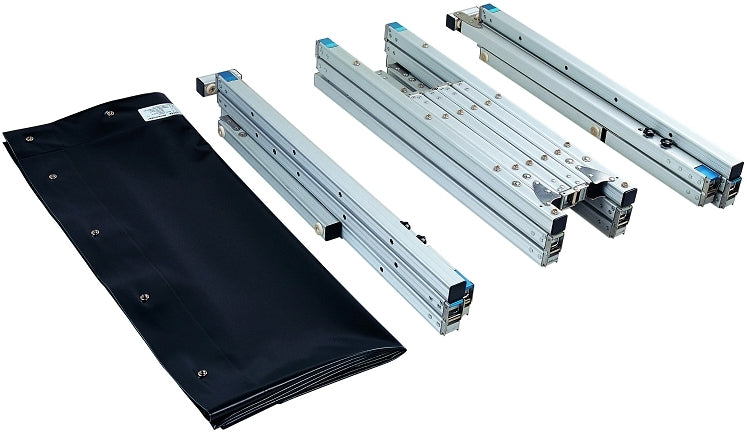

• Frame
• Front Projection Fabric
• Rear Projection Fabric

Aspect Ratio

It's very important to consider the aspect ratio of the projector screen that you are buying. This screen is a Video (4:3) format projector screen. This aspect ratio was the most popular before the introduction of 16:9 for modern HD home cinema, and 16:10 Widescreen laptops for business. These days, there are relatively few video sources with a native SVGA resolution (800x600px).

Aspect Ratio buying guide

Sapphire projector screens are well made and fantastic quality. They offer a wide range of screens and really great support. All products come with a 3 year warranty for peace of mind.

This item is a stock item and is usually dispatched within 1 business day.
