Please contact us for the current lead time on this screen or to discuss alternative screen options.
The perfect portable and height-adjustable solution for any venue, no tools required.

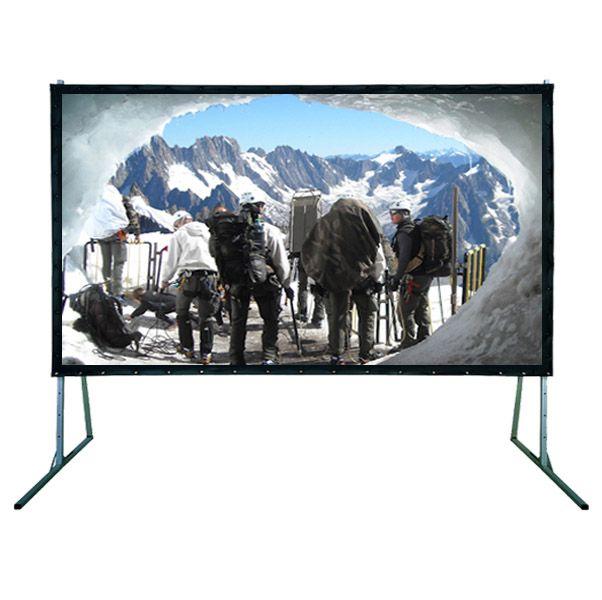

The Sapphire Rapidfold screen is ideally suited for any large projection solutions. The Rapidfold frame has been engineered to make installation simple. Whether for a permanent installation or for the demands of event hire the Rapidfold screen is designed with longevity in mind.
- Height Adjustable
- Front and rear projection
- Comes with a frame and a flight case on wheels
- When assembled the screen is perfectly flat creating a flawless picture

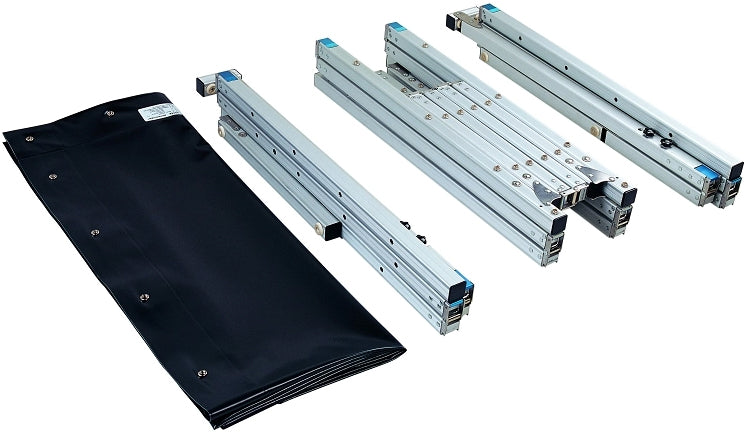

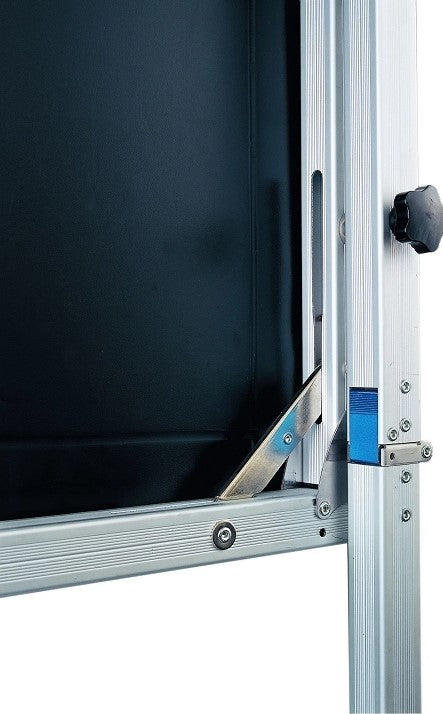

The unique lightweight 'one piece' frame installs in seconds without the use of tools. The frame comprises of a rugged aluminium frame with multiple easy locking joints, and quick release mechanisms so that the screen can be installed in seconds.
The Matt White, Flame retardant and mildew resistant Fabric is attached to the frame with a quick-release popper system (dome and grommet).
Please see the table and image below that show the screen dimensions.
|Projection||Front & Rear Projection|
|Image Size||(W x H) 3658 x 2058mm (165" Diagonal Size)|
|Border Dimensions||(B1) - 104mm, (C1) -104mm|
|Fabric Size||(L) Fabric Width 3866mm, (F) Fabric Height 2266mm|
(H1) Min 336.5mm Max 1233mm (Floor to bottom of the screen)
(H2) Min 3191mm Max 3391mm (Floor to top of the screen)
|Frame Profile||32mm x 32mm|
The fabric used is a specially designed PVC material to help capture a flawless and outstanding image. The screen is coated with micron diamond optical microgrooves to help produce a 4K resolution.
The rear projection fabric features a transparent material for rear projection applications. The material is grey opaque which helps achieve a very high level of contrast as well as a low reflection for ambient light.
Standard stock item - ships from stock.
Sapphire Code: SFFS365 Dual 16:9 (SFFS365FR-WSF + SFFS365RP-WSF-FABRIC)
