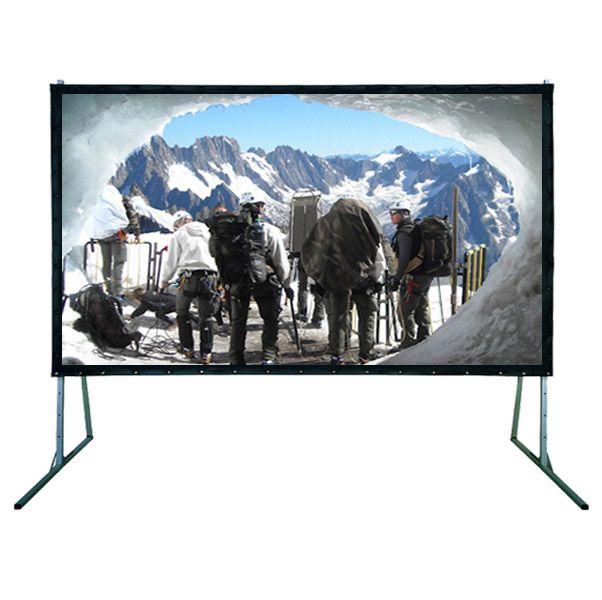

Sapphire Rapidfold Screen (Front & Rear Projection) (16:9) 3.0m 138"

Sapphire Rapidfold Screen (Front & Rear Projection) (16:9) 3.0m 138"


Manufacturers P/N: SFFS305 Dual 16:9 (SFFS305FR-WSF + SFFS305RP-WSF-FABRIC)

  • Fastfolding mobile screen with front & rear fabric
  • Widescreen 16:9 aspect ratio
  • 3.0m wide (138"diag)

Please double-check the full size of the screen including any borders, casing/housing dimensions, etc. against the size of the space you wish to install it into, and allow for a degree of tolerance.

Regular price £1,220.00
Regular price Sale price £1,220.00
£1,464.00 Inc VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Collapsible content

Sapphire Rapidfold Screen (Front & Rear Projection) (16:9) 3.0m 138"

The perfect portable and height-adjustable solution for any venue, no tools required.

The Sapphire Rapidfold screen is ideally suited for any large projection solutions. The Rapidfold frame has been engineered to make installation simple. Whether for a permanent installation or for the demands of event hire the Rapidfold screen is designed with longevity in mind.

  • Portable
  • Height Adjustable
  • Front and rear projection

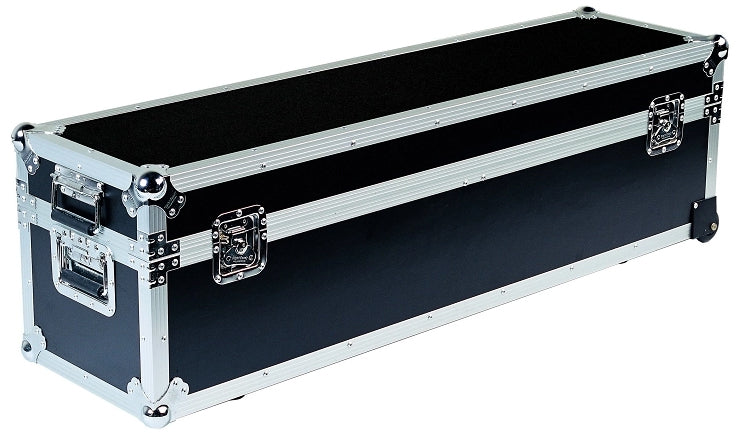

  • Comes with a frame and a flight case on wheels
  • When assembled the screen is perfectly flat creating a flawless picture

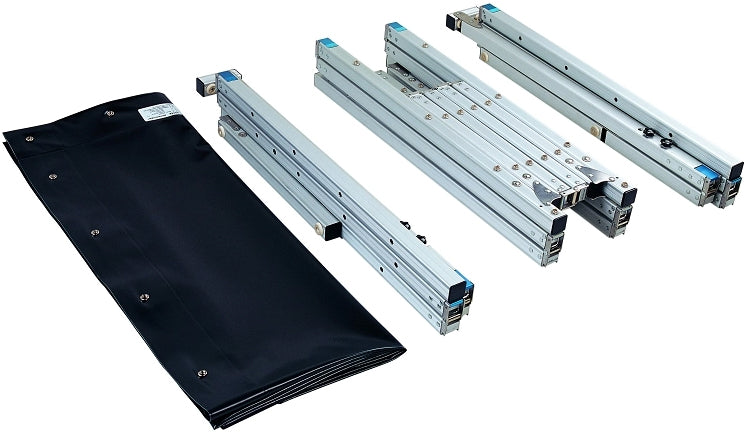

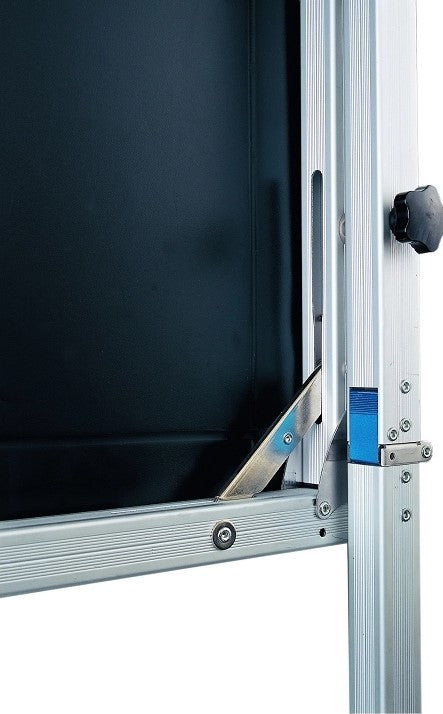

The unique lightweight 'one piece' frame installs in seconds without the use of tools. The frame comprises a rugged aluminium frame with multiple easy locking joints, and quick release mechanisms so that the screen can be installed in seconds.

The Matt White, Flame retardant and mildew resistant Fabric is attached to the frame with a quick-release popper system (dome and grommet).

Fabric specifications:

Front Projection

The fabric used is a specially designed PVC material to help capture a flawless and outstanding image. The screen is coated with micron diamond optical microgrooves to help produce a 4K resolution.

Sapphire Rapidfold Front Projection Fabric

Sapphire Fabric Specs

Rear Projection

The rear projection fabric features a transparent material for rear projection applications. The material is grey opaque which helps achieve a very high level of contrast as well as a low reflection for ambient light.

Sapphire Rapidfold Rear Fabric

Sapphire Rapidfold Rear Fabric Specs

Screen Dimensions

Screen Size: 3.0m
Viewing Area: 3048x1715mm (WxH)
Black Border Area: Top 104mm, Bottom 104mm, Sides 104mm left and right
Diagonal Image Size: 138"diagonal
Case Dimensions: 1400x350x320

Aspect Ratio: 16:9
Screen Gain: 1:1

Please see the table and image below that show the screen dimensions.

Product Code PROSC-1308
Projection Front & Rear Projection
Image Size (W x H) 3048 x 1715mm (138" Diagonal Size)
Border Dimensions (B1) - 104mm, (C1) -104mm
Fabric Size (L) Fabric Width 3256mm, (F) Fabric Height 1923mm
Height Adjustment

(H1) Min 343mm Max 1710mm (Floor to bottom of the screen)

(H2) Min 3191mm Max 3610mm (Floor to top of the screen)

Frame Profile 32mm x 32mm
Sapphire Rapidfold Screen - Dimensions

More Info

This is the 16:9 version containing :

  • Frame
  • Front Projection Fabric
  • Rear Projection Fabric

Aspect Ratio

It's very important to consider the aspect ratio of the projector screen that you are buying. This screen is a Widescreen (16:9) format projector screen. Typically you want to match the picture shape with the native resolution of your projector, and this screen is ideally suited to match a Widescreen High Definition (HD) picture 1920x1080px. Mainly used for home cinema, as this is the standard format of modern TV sets. Perfect for SKY, BluRay, Gaming etc

Aspect Ratio buying guide

About Sapphire AV

  Sapphire projector screens are well made and fantastic quality. They offer a wide range of screens and really great support. All products come with a 3 year warranty for peace of mind.
