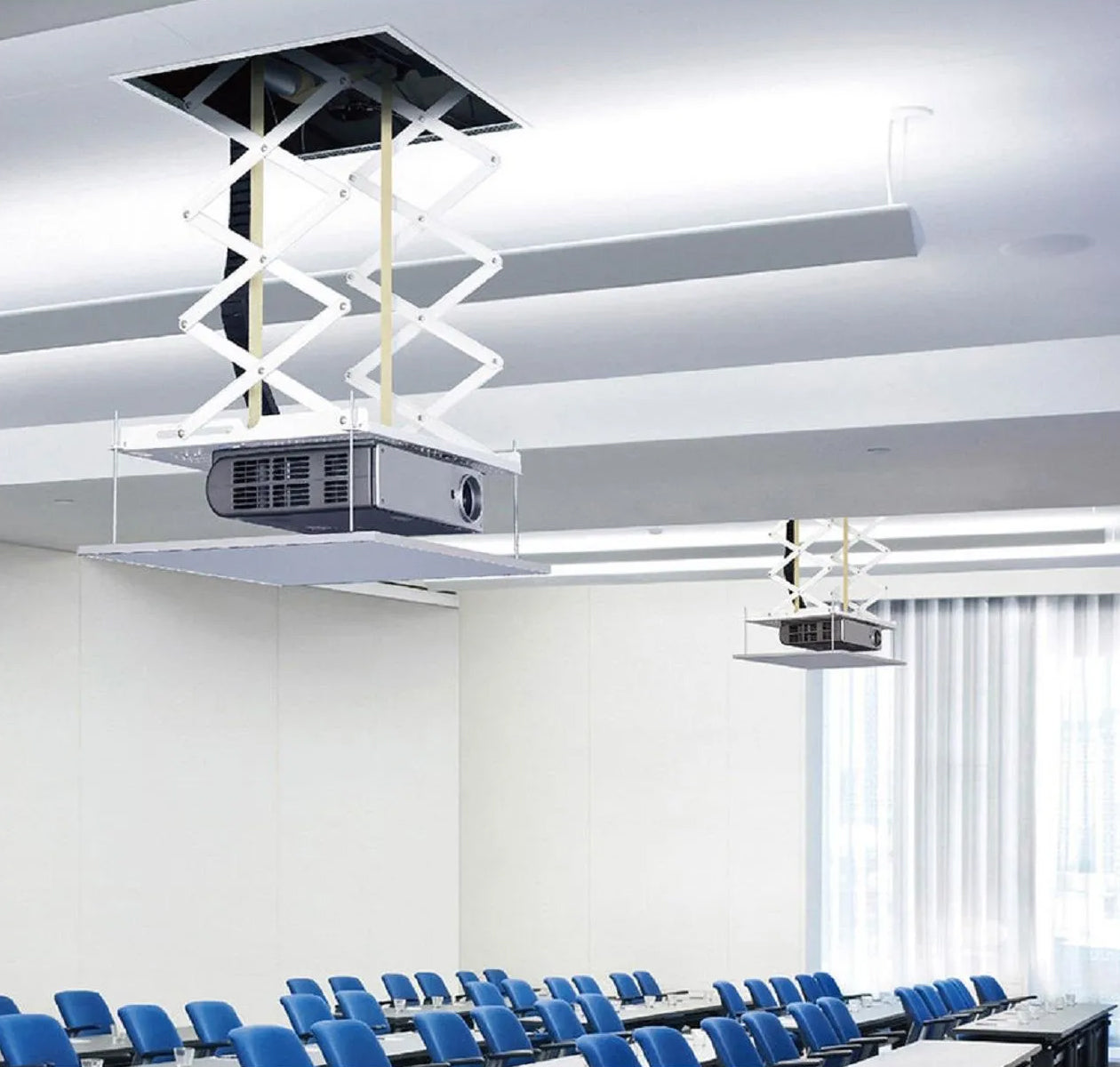

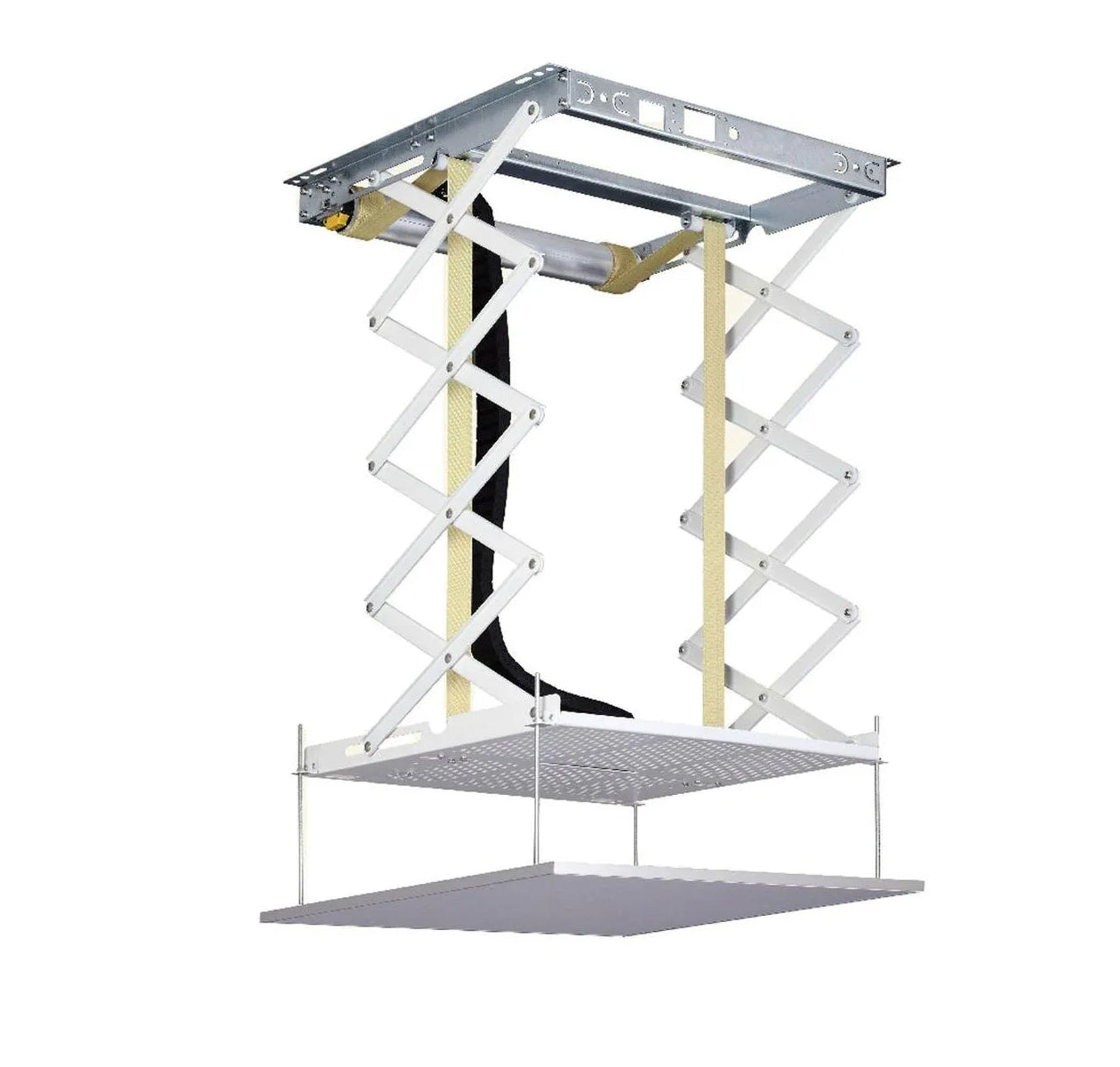

The Sapphire projector lift is an entry-level lift with a drop of up to one metre when fully extended.

You can use the motor stops to adjust this and make it stop short if you do not require the full drop. Impress everyone when your projector appears out of the ceiling as if by magic. It is designed to fit smaller ceiling voids.

Key Features:

• Full cable management system.
• Includes 595 x 595 mm decor panel to fit to the ceiling.
• Includes threaded rods for the bottom decor panel.
• Includes bolts to fit most projectors and secure them to the grid.
• Very small projectors can be fitted inside the mechanism to fit very small spaces.
• Ships with a plug and inline switch to make installation and testing easy before fitting your desired control solution.
• Maximum Weight Capacity: 25KG

Dimensions:

• Max Drop From Ceiling: 1000 mm
• Max Height Req in ceiling: 190 mm
• Projector inside lift: 300 (W) x 340 (L) x 130 (H) mm
• Projector under lift mesh platform: 500 (W) x 500 (L) x 200 (H) mm

Please make sure your projector fits in the lift, and also that you have sufficient space above the ceiling.

Delivery Times

Lead time is approx. 2-3 working days

Sapphire Code: SAPPL04
