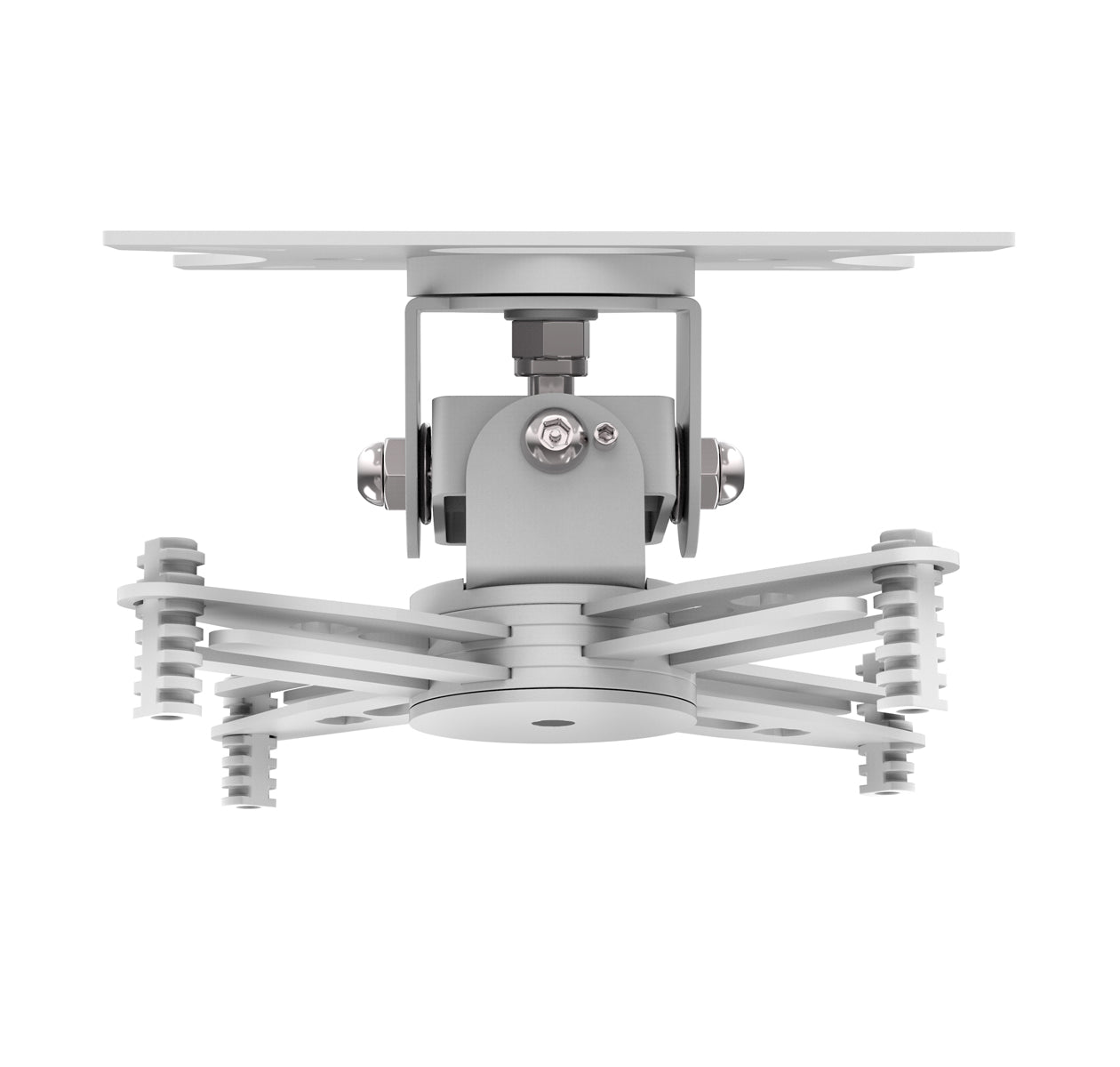

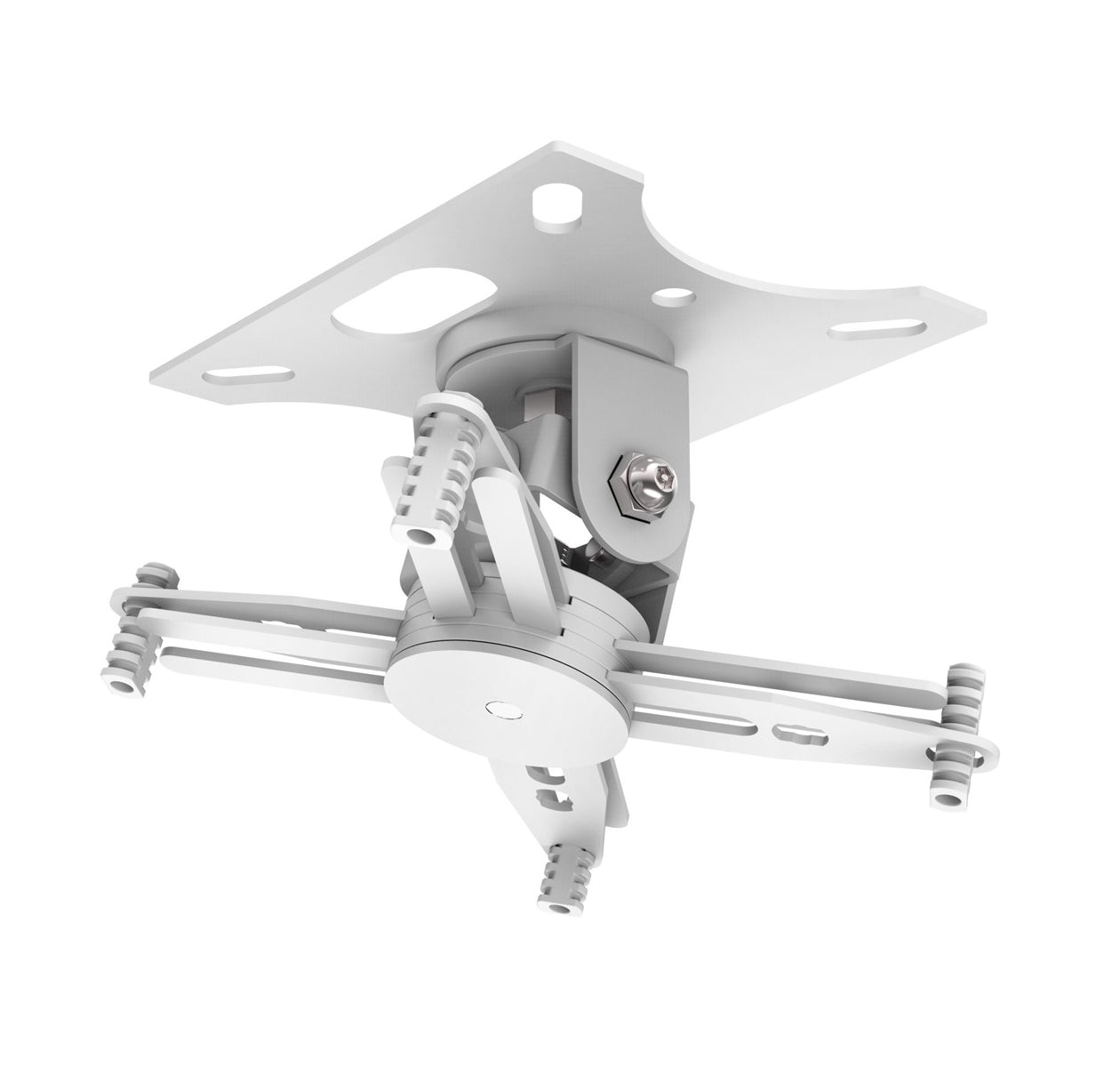

Universal projector ceiling mount for close-to-ceiling installation

• All parts included and arrives 95% assembled.
• 4 fully adjustable spider arms fit 99% of projectors

This is a universal projector ceiling bracket designed to secure 99% of projectors safety and sturdily to ceilings. It is designed for applications where no ‘drop’ is required so no pole is included.

Easy fit

Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.

Robust construction

Robust Construction High standard of finish and over-engineered for stability and safety. A rugged high-quality satin-white finish blends with ceiling tiles.

Manoeuvrable

The top and bottom parts can rotate 360 degrees, and the spider arms have a maximum span of 340mm.

Sloping Ceilings

A tilting mechanism is built-in allowing you to use the bracket with cathedral-type ceilings.

Safety Approved

As with all projector Techmounts a safety cable is included to attach to the projector. The bracket has a recommended maximum safe working load (SWL) of 10kg which is well within the limits of the product.

Specifications

BOX DIMENSIONS: 244 x 174 x 120mm

PACKAGED WEIGHT: 1.6kg

SAFE WORKING LOAD: 10kg

COLOUR: Satin White

Accessories Included:

• 1 x H50 Pin-Hex key
• 1 x 17mm Spanner
• 4 x M2.5 43mm pan slot for Optoma & Acer
• 4 x M3 43mm screws
• 4 x M4 43mm screws
• 4 x M5 43mm screws
• 4 x M6 43mm screws
• 4 x M8 50mm Ceiling Fixtures with raw plugs
• 1 x Safety Tether

Delivery Times

Standard stock item - ships from stock.
