Konftel Hub

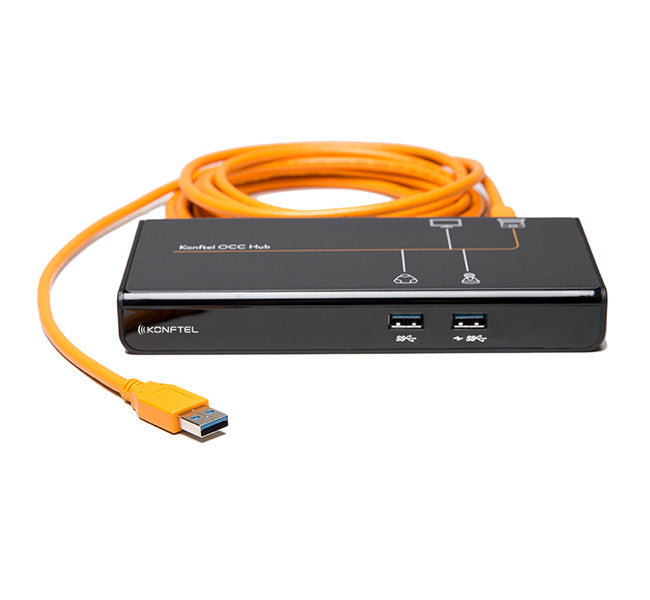

The Konftel Hub is the beating heart of Konftel’s solutions for video conferencing in every kind of meeting room. It supports Konftel One Cable Connection, so a single USB cable is all you need to connect the camera, the speakerphone and the room’s screen to the collaboration app on your laptop.

How it works

This is how the components fit together, with the Konftel Hub making the solution a breeze to set up and use. It’s Plug & Play via the USB connection and requires no extra drivers as long as you have a modern version of Windows as the operating system* on your computer. You can also opt to connect the screen directly to your computer, usually via HDMI, and then you don’t need the driver from DisplayLink (see below). * The Konftel OCC Hub uses DisplayLink, the driver for which is already on your computer if you have Windows 10 (1607) Anniversary Update or later. Drivers for other operating systems can be found here: DisplayLink.

Compatible Products

• Konftel 800

• Konftel CAM20
• Konftel CAM50
• Konftel EGO
• Konftel 55
• Konftel 55WX
• Konftel 300WX
• Konftel 300MX
• Konftel 300PIX

Contents:

Konftel OCC Hub (900102149), 3 m USB 2.0 cable , 5 m USB cable (type A/mini B) for Konftel 55/55Wx/300IPx/300Wx/300Mx/300, 5 m USB cable (type A/micro B) for Konftel Ego/Konftel 800, AC adapter (EU, US, AU, UK), Velcro® tape, Quick guide, safety declaration.

Size: 182 x 78 x 32 mm

Weight: 365g

Video: Resolution up to 2048 x 1152. Colours in 16 Bits and 32 Bits supported.

Connections: 1 x USB 2.0 for computer connection. 2 x USB 2.0 for connecting conference cam and speakerphone. 1 x HDMI for connecting screen.

Power adapter: AC 100 – 240V, DC 5V/4A

Temperature: operation 0 – 40 °C, storage -20 – 70 °C

Warranty: 2 years
